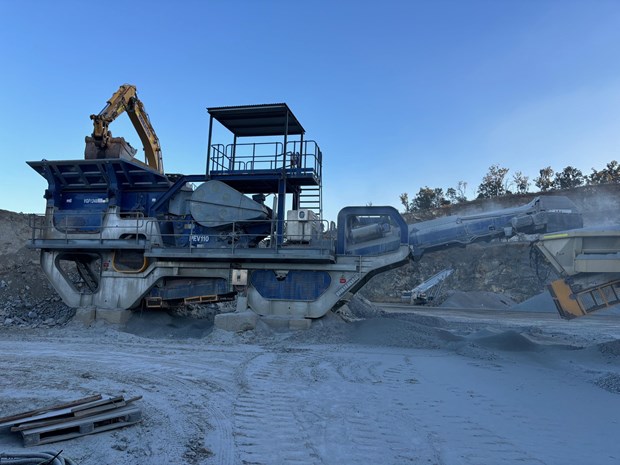

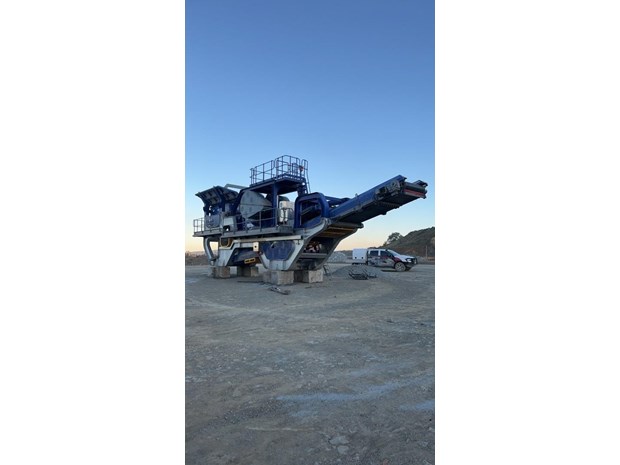

SKID MODULAR PRIMARY JAW CRUSHING PLANT JJ-110J- E/S
DESCRIPTION
Y.O.M 2018 3,000hrs Operation since new
Designed in United Kingdom and built by MW LTD in Shanghai
Heavy duty static modular jaw crusher with following features:
Skid mounted / modular PEV-110 Primary Jaw Crusher Unit 44" x 34" / 1120mm x 865mm
9 m3 capacity main feed hopper with Hardox© liners
Stepped bar vibrating grizzly feeder
Side scalpings stockpile conveyor (4.5 M Long x 650 mm)
Main discharge product stockpile conveyor (12.0 M Long x 1200 mm)
Over-band magnet unit
Main electrical control cabinet IP65
DIMENSIONS & WEIGHT
Length Working 17,691 m (58 0 ½)
Width Working 6,414 m (21 0 ½)
Height Working 5,867 m (19 3)
Length Transport 14,512 m (47 7 3/8)
Width Transport 2,250 m (7 4 5/8)
Height Transport 4,031 m (13 2 ¾)
Weight Operational 51,000 Kgs
