Morgan Bennett Machinery Pty Ltd

REMCO VSI SAND CRUSHER 1530-ST

SKID MODULAR PRIMARY JAW CRUSHING PLANT JJ-110J- E/S
DESCRIPTION
- Y.O.M 2018
- Designed in United Kingdom and built by MW LTD in Shanghai
- Heavy duty static modular jaw crusher with following features:
- Skid mounted / modular PEV-110 Primary Jaw Crusher Unit 44" x 34" / 1120mm x 865mm
- 9 m3 capacity main feed hopper with Hardox© liners
- Stepped bar vibrating grizzly feeder
- Side scalpings stockpile conveyor (4.5 M Long x 650 mm)
- Main discharge product stockpile conveyor (12.0 M Long x 1200 mm)
- Over-band magnet unit
- Main electrical control cabinet IP65
DIMENSIONS & WEIGHT
Length Working 17,691 m (58 0 ½)
Width Working 6,414 m (21 0 ½)
Height Working 5,867 m (19 3)
Length Transport 14,512 m (47 7 3/8)
Width Transport 2,250 m (7 4 5/8)
Height Transport 4,031 m (13 2 ¾)
Weight Operational 51,000 Kgs
2018 SRH SCH3000 Cone Crusher Station
Crusher has only done approx 3,500hrs of operation and was recently refurbished with new bushes and seals.
Secondary / Tertiary Cone Crusher depending on liners fitted
Heavy Duty Skid Frame bolted together for ease of shipment and assembly on site
Frame mounted Oil Tank and Lubrication unit
Frame mounted Hydraulic Oil Tank and High Pressure control unit assembly
Drive motor and V Belts
Frame mounted Electrical control panel to Australian Standards
SRH is a subsidiary company of Metso and the crusher has 100% interchangeability with Metso HP300 parts
MCC CONTROL ROOOM with additional drives for Screen and conveyors

CUSTOM PRIMARY JAW CRUSHER STATION, CONE CRUSHER STATION & CONTROL MCC & GENERATOR

2017 METSO LT220D Tracked Cone Crusher with onboard Screen
One Owner, full service history available
Efficiency and cost savings with LT220D cone crusher
Lokotrack® LT220D mobile crusher combines a cone crusher and a screen on the same chassis, which why it is often referred as Lokotrack® LT220D mobile crushing and screening plant. It is typically used as a secondary or tertiary crushing plant in a multistage crushing process to produce up to three calibrated end products.
POWERFUL COMBINATION OF CRUSHER AND SCREEN
Lokotrack® LT220D can be equipped with either the proven and powerful Nordberg® GP220 or HP200 cone crushing unit which are engineered for versatile aggregates production requirements. A large 8.4 m2 (10 yd2) screen provides high capacity as well as excellent screening efficiency.
Both crusher and screen run with a single CAT® C13 diesel engine. Maximum power is made available to the crusher by using hydraulic drive power transmission, resulting in reduced fuel consumption and running costs.
OPTIMUM CRUSHING RESULTS
The Metso IC process control system optimizes crushing results. It allows one-button start and stop, with built-in troubleshooting and a variety of parameter selections. All Lokotrack® mobile crushers in the same crushing process can be connected to the Metso IC system. In addition, the entire process can be conveniently monitored and controlled from the excavator's cab using the Metso Remote IC application for remote process control.
COMPACT AND TRANSPORTABLE
Lokotrack® LT220D is easy to move between the sites thanks to its compact design and weight. It can be set up in only minutes due to its hydraulically operated screen lifting and folding side conveyors.
SAFE AND EASY MAINTENANCE
Metso is investing heavily in its equipment safety and easy maintenance. In Lokotrack® LT220D, safe and easy daily operations are ensured with an extensive platform, and easy access to cone crusher maintenance points and for changing screening media.
Ideal for
Efficient secondary crushing and screening applications
Producing up to three end products using just LT220D and a primary crushing plant
Benefits
Crusher and screen combined
High-capacity ensured by powerful crusher and screen
Excellent energy efficiency
Quick to set up with hydraulic functions
Long-term investment with high resale value
Lokotrack® LT220D mobile crusher's technical specifications
MODEL
LOKOTRACK® LT220D
Crusher unit Nordberg® GP220 / Nordberg® HP200
Feed opening 210 / 185 mm (8 / 7)
Engine CAT®, 310 kW (415 hp)
Transport dimensions
Weight 46,000 kg (101,000 lbs)
Width 3,000 mm (9'10")
Height 3,500 mm (11'6")
Length 16,500 mm (54')

METSO LT220D

2016 METSO HP3 CONE CRUSHER complete with 220kw electric motor drive and integral motor drive base sub frame, Lubrication set and quantity of spare parts. Crusher was first installed in 2020 and removed in 2022 having done only 18 months of operation. Comes with AuCom NHP Soft Starter

2016 METSO HP3

Freehold Hard Rock Quarry available for sale in Far North Qld. Complete with all approvals, Plant & Equipment and Infrastructure.
Will be sold on a "Walk in Walk out basis".

CRUSHING PLANT QUARRY FOR SALE - NORTH QUEENSLAND HARD ROCK

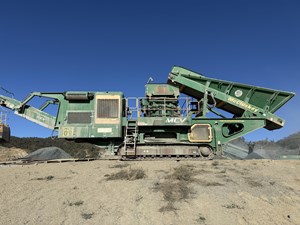

Track Mounted Cobra 1000 Horizontal Shaft Impactor, 3 Bar Rotor, Caterpillar C7 300HP. 80-120tph, new wear parts. Will closed circuit with Finlay 683 or similar screener

COBRA 1000

2013 500TPH QME PUGMILL PLANT
- 20m3 feed hopper
- Feed hopper 900mm wide 12m long discharge conveyor with scraper and guide rollers
- Skid mounted twin shaft pugmill chamber. 2700mm x 1200mm, Replacable paddle arms,
- 75kw drive, self cleaning belt on floor.
- 900mm x 13m discharge conveyor with head shoot and belt scrapers.
- Air compressor
- Control room
- MCC room
- 70t approx. silo with aeration, regulator, filtered ventilation, high level alarm, 240v solenoid
valve control.
Plant is PLC or manual control. Has belt scales and cement screw scales.

Q.M.E. 500TPH

Used 315KW WNM Vertical Shaft Electric Motor to suit VSI Crusher

WNM ELECTRIC MOTOR 315KW

6000L Stainless Steel Mixing Tank with Agitator

STAINLESS STEEL MIXING TANK 2000MM H X 2000MM DIA

1999 EUCLID R60C

Pegson Telsmith Hadfields 3ft Gyrospere Cone Crusher mounted on skidbase complete with new drive motor, electrics and hydraulic lubrication.

PEGSON 36"

57m x 900mm Truss Section Conveyor, single sided walkway, GTU, complete with support trestles, dismantled and stored.

CUSTOM BUILT 57M X 900MM
