Morgan Bennett Machinery Pty Ltd

Mobile KAWASAKI 1000 Cone Crusher
Powered by Caterpillar Genset with onboard electrics. Can be moved around and loaded/unloaded by site wheel loader.
In good operating condition

KAWASAKI 1000

2004 SANDVIK RP107 185KW VSI CRUSHER
Serial No. MRP086, Mounted on skid base frame complete with 10ft Container 185kw Motor with Microdrive Variable Speed Controller. Fitted with Stairway and Access Platform. 3 port rotor.

SANDVIK RP107

Kemco 48" x 40" Single Toggle Jaw Crusher, mounted on heavy duty skid with 185kw motor drive and flywheel guards.
CSS 100-250mm
Capacity 200-500tph
For transport, it is one module measuring 7,500mm Long x 3,300mm wide x 4,000mm high (including guards). Weight is estimated at 60,000-65,000kg. Crusher 42,000kg.

KEMCO S7N 48X40 SINGLE TOGGLE

Terex Jaques JW42 Jaw Crusher, 42" x 30" (1070mm x 760mm) Feed Opening, 75mm Minimum CSS, 18,000kgs

TEREX JAQUES JW42

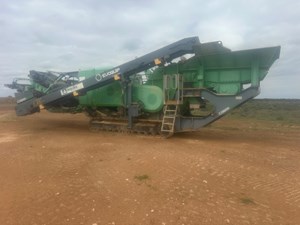

2013 McCLOSKEY I44R TRACK IMPACT CRUSHER
Closed circuit machine
7,013hrs
Good operating condition

MCCLOSKEY I44R IMPACTOR

MCCLOSKEY S190

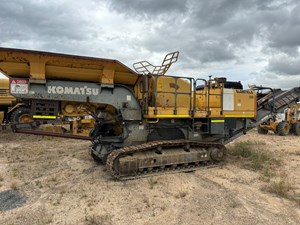

KOMATSU BR380 JG JAW CRUSHER 5067hrs
With fines side belt and additional frame to mount Magnet over end of discharge belt if doing concrete crushing
Good operating condition

KOMATSU BR380JG

SKID MODULAR PRIMARY JAW CRUSHING PLANT JJ-110J- E/S
DESCRIPTION
- Y.O.M 2018
- Designed in United Kingdom and built by MW LTD in Shanghai
- Heavy duty static modular jaw crusher with following features:
- Skid mounted / modular PEV-110 Primary Jaw Crusher Unit 44" x 34" / 1120mm x 865mm
- 9 m3 capacity main feed hopper with Hardox© liners
- Stepped bar vibrating grizzly feeder
- Side scalpings stockpile conveyor (4.5 M Long x 650 mm)
- Main discharge product stockpile conveyor (12.0 M Long x 1200 mm)
- Over-band magnet unit
- Main electrical control cabinet IP65
DIMENSIONS & WEIGHT
Length Working 17,691 m (58 0 ½)
Width Working 6,414 m (21 0 ½)
Height Working 5,867 m (19 3)
Length Transport 14,512 m (47 7 3/8)
Width Transport 2,250 m (7 4 5/8)
Height Transport 4,031 m (13 2 ¾)
Weight Operational 51,000 Kgs
2018 SRH SCH3000 Cone Crusher Station
Crusher has only done approx 3,500hrs of operation and was recently refurbished with new bushes and seals.
Secondary / Tertiary Cone Crusher depending on liners fitted
Heavy Duty Skid Frame bolted together for ease of shipment and assembly on site
Frame mounted Oil Tank and Lubrication unit
Frame mounted Hydraulic Oil Tank and High Pressure control unit assembly
Drive motor and V Belts
Frame mounted Electrical control panel to Australian Standards
SRH is a subsidiary company of Metso and the crusher has 100% interchangeability with Metso HP300 parts
MCC CONTROL ROOOM with additional drives for Screen and conveyors

CUSTOM PRIMARY JAW CRUSHER STATION, CONE CRUSHER STATION & CONTROL MCC & GENERATOR

SAND QUARRY FOR SALE - LEASEHOLD - ROCKHAMPTON, QUEENSLAND

Complete with all approvals, Plant & Equipment and Infrastructure. Will be sold on a "Walk in Walk out basis" Leasehold.

Video Flyover of the Quarries Link: .tinyurl/PeakHillYaambaSale

Please contact Morgan Bennett for further Information:
morganbennettmachinery@gmail.com

CUSTOM SAND QUARRY LEASE FOR SALE - ROCKHAMPTON, QUEENSLAND

2017 METSO LT220D Tracked Cone Crusher with onboard Screen
One Owner, full service history available
Efficiency and cost savings with LT220D cone crusher
Lokotrack® LT220D mobile crusher combines a cone crusher and a screen on the same chassis, which why it is often referred as Lokotrack® LT220D mobile crushing and screening plant. It is typically used as a secondary or tertiary crushing plant in a multistage crushing process to produce up to three calibrated end products.
POWERFUL COMBINATION OF CRUSHER AND SCREEN
Lokotrack® LT220D can be equipped with either the proven and powerful Nordberg® GP220 or HP200 cone crushing unit which are engineered for versatile aggregates production requirements. A large 8.4 m2 (10 yd2) screen provides high capacity as well as excellent screening efficiency.
Both crusher and screen run with a single CAT® C13 diesel engine. Maximum power is made available to the crusher by using hydraulic drive power transmission, resulting in reduced fuel consumption and running costs.
OPTIMUM CRUSHING RESULTS
The Metso IC process control system optimizes crushing results. It allows one-button start and stop, with built-in troubleshooting and a variety of parameter selections. All Lokotrack® mobile crushers in the same crushing process can be connected to the Metso IC system. In addition, the entire process can be conveniently monitored and controlled from the excavator's cab using the Metso Remote IC application for remote process control.
COMPACT AND TRANSPORTABLE
Lokotrack® LT220D is easy to move between the sites thanks to its compact design and weight. It can be set up in only minutes due to its hydraulically operated screen lifting and folding side conveyors.
SAFE AND EASY MAINTENANCE
Metso is investing heavily in its equipment safety and easy maintenance. In Lokotrack® LT220D, safe and easy daily operations are ensured with an extensive platform, and easy access to cone crusher maintenance points and for changing screening media.
Ideal for
Efficient secondary crushing and screening applications
Producing up to three end products using just LT220D and a primary crushing plant
Benefits
Crusher and screen combined
High-capacity ensured by powerful crusher and screen
Excellent energy efficiency
Quick to set up with hydraulic functions
Long-term investment with high resale value
Lokotrack® LT220D mobile crusher's technical specifications
MODEL
LOKOTRACK® LT220D
Crusher unit Nordberg® GP220 / Nordberg® HP200
Feed opening 210 / 185 mm (8 / 7)
Engine CAT®, 310 kW (415 hp)
Transport dimensions
Weight 46,000 kg (101,000 lbs)
Width 3,000 mm (9'10")
Height 3,500 mm (11'6")
Length 16,500 mm (54')

METSO LT220D

REMCO VSI SAND CRUSHER 1530-ST

FOR HIRE METSO LT1213s LOKOTRACK IMPACT CRUSHER available for DRY HIRE
See PDF Brochure and Specifications
Weight Length Width Height
52,300 kg 19,400 mm 3,200 mm 3,630 mm
Feed opening
1,320 x 990 mm

METSO LT1213S MOBILE IMPACT CRUSHER
